1. Comply with SAE J1772 standard
2. Beautiful appearance, with protective cover, support front installation
3. The pin head is designed with safety insulation to prevent accidental direct contact with human hands.Excellent protection performance, the protection level reaches IP54

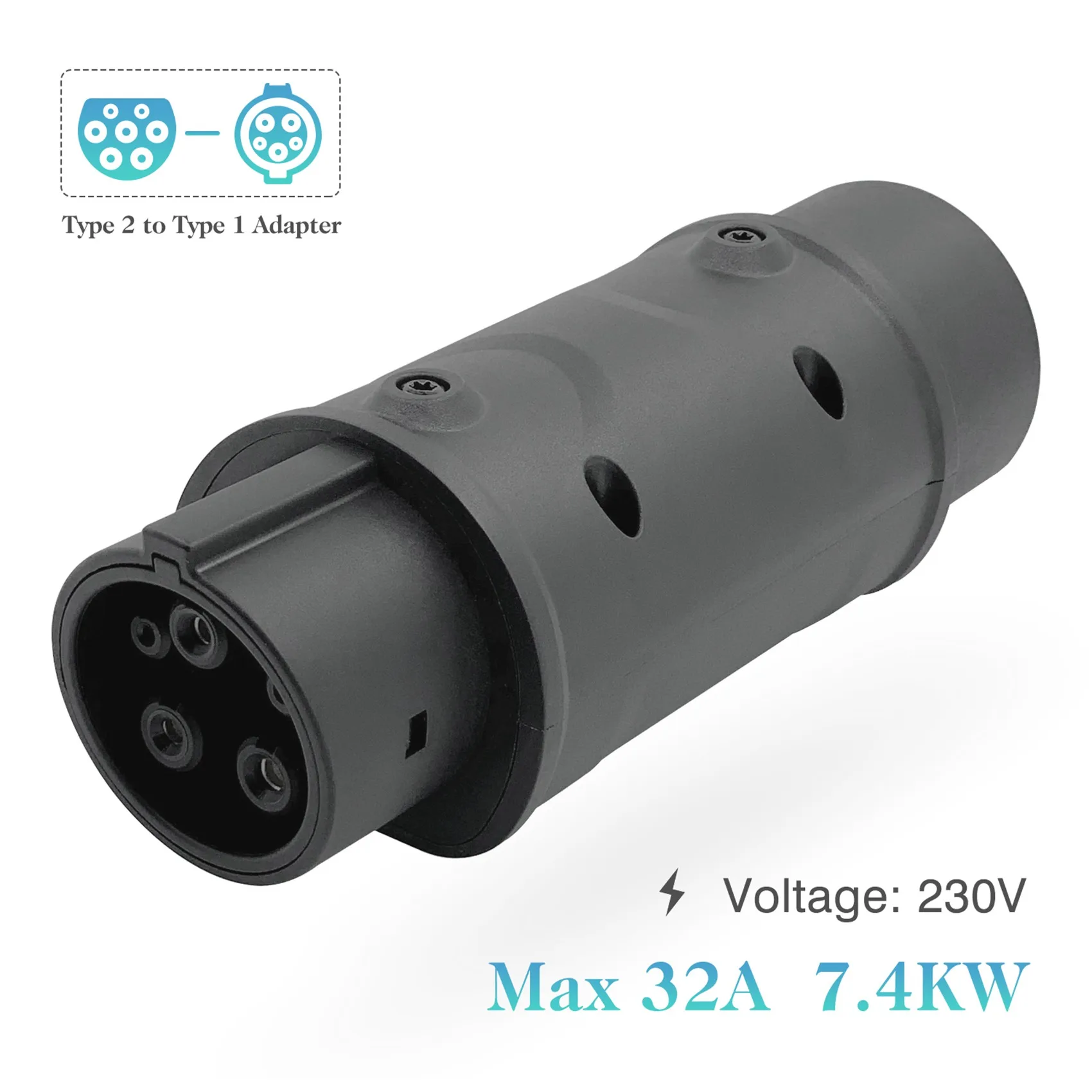

4. Type: European change American Adaptor
5. Use: EV charging
Mechanical behavior:
1. Mechanical life: no-load plugging and unplugging Greater than 10000 times
2. Insertion force during coupling: Greater than 45N Less than 80N
Electrical performance:
1. Rated working current: 16A or 32A
2. Working voltage: 110V~250V
3. Insulation resistance: Greater than 1000MΩ (DC500V)
4. Terminal temperature rise: Less than 50K
5. Withstand voltage: 2000V
6. Contact resistance: 0.5mΩ Max
Ambient temperature:
1. Working environment temperature: -30℃~+50℃
We recommend to use the following steps:

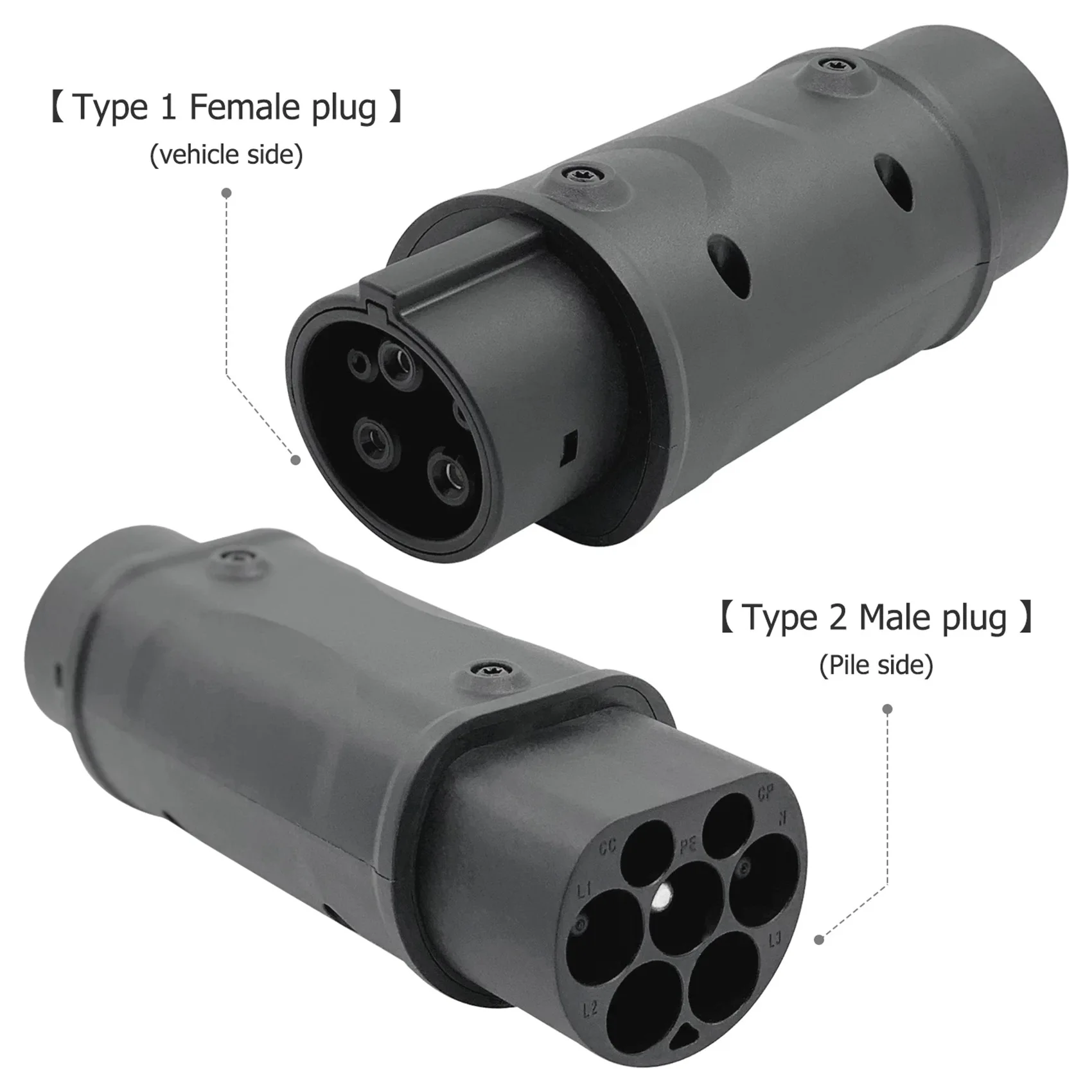

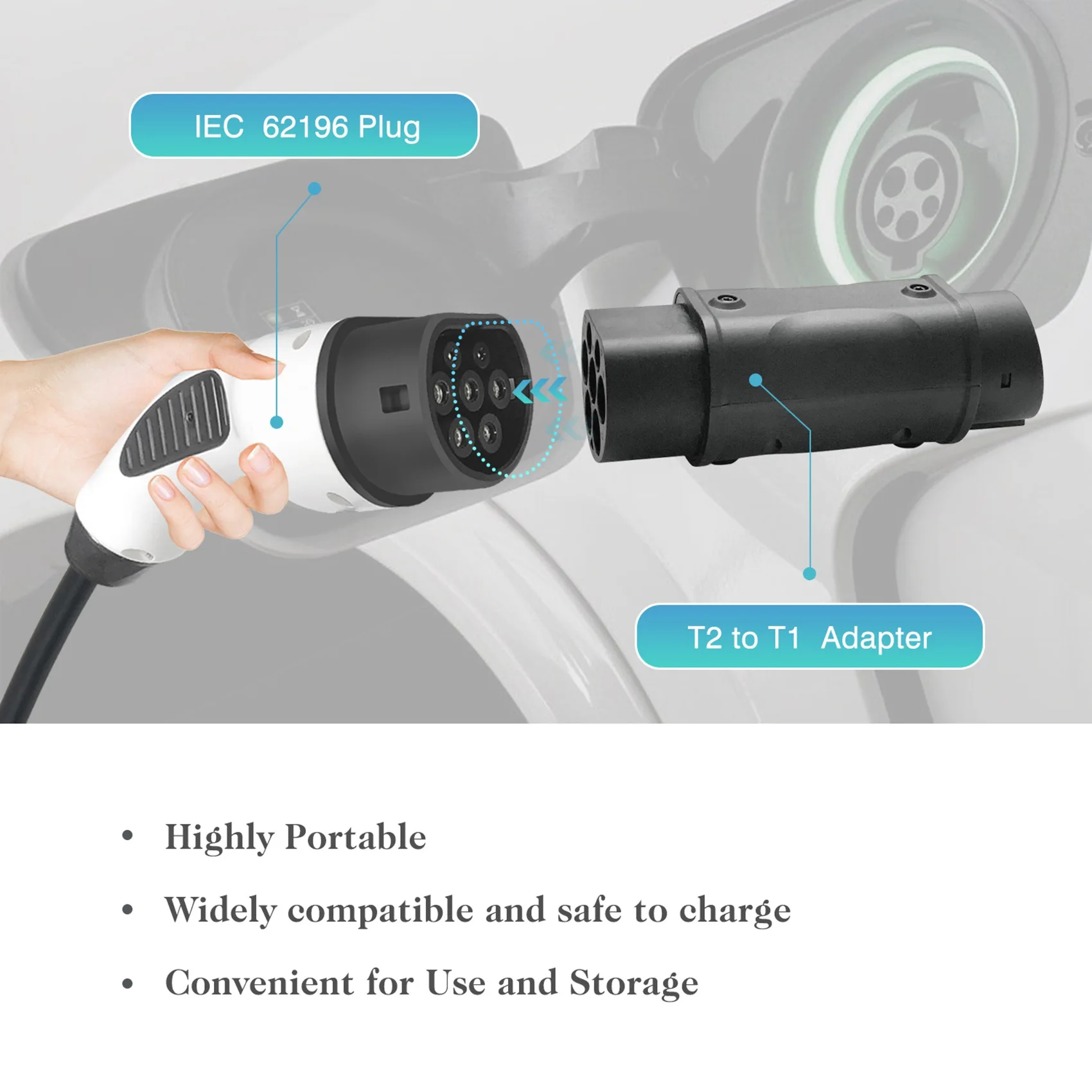

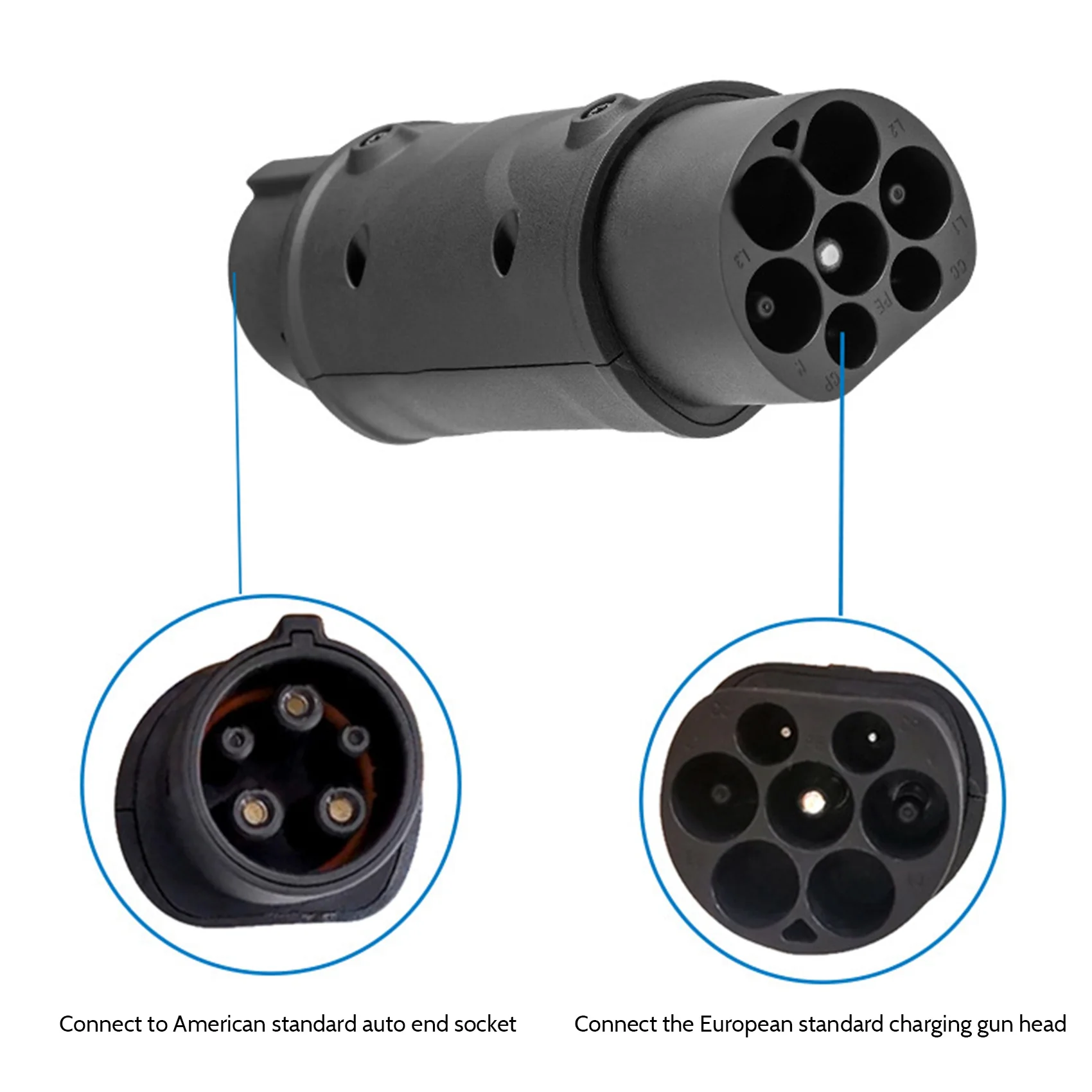

1.Plug in the Type 2 end of the adapter to the charging cable
2.Plug in the Type 1 end of the adapter to the car’s charging socket
3.After the adapter has clicked in place you are ready for the chargex
Don’t forget to activate the charging station
When you finish with the charge, disconnect the vehicle side first and then the charging station side. Remove the adapter from the charging station when not in use.
Material:thermoplastic
colour:Black
Package Contents:
1 x Electric Cars Charging
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
